6-LED Pod Light Power Wiring Harness Kit with 3 PIN DT Plug
Auxbeam®Black Friday Cyber Monday Sale Starts Now!
$12 OFF OVER $79 CODE: BFS12
$35 OFF OVER $169 CODE: BFS35
$70 OFF OVER $269 CODE: BFS70
💥During the BFCM event, simply place an order on the website using any code to receive a free AUXBEAM sticker gift pack.
The deal will end on December 7th (Pacific Time: UTC-8)
- Description
- Shipping and Refund
- Reviews
Recommend Fit for Our Pod Light SKU:
6-Pod Lights (A maximum of six pod lights can be installed):
ZD000753/ZD000765/ZD000764/ZD000752/ZD000762/ZD000763/ZD000820/ZD000821
4-Pod Lights (A maximum of four pod lights can be installed):
ZD000617/ZD000483/ZD000484/ZD000696/ZD00069
Features:

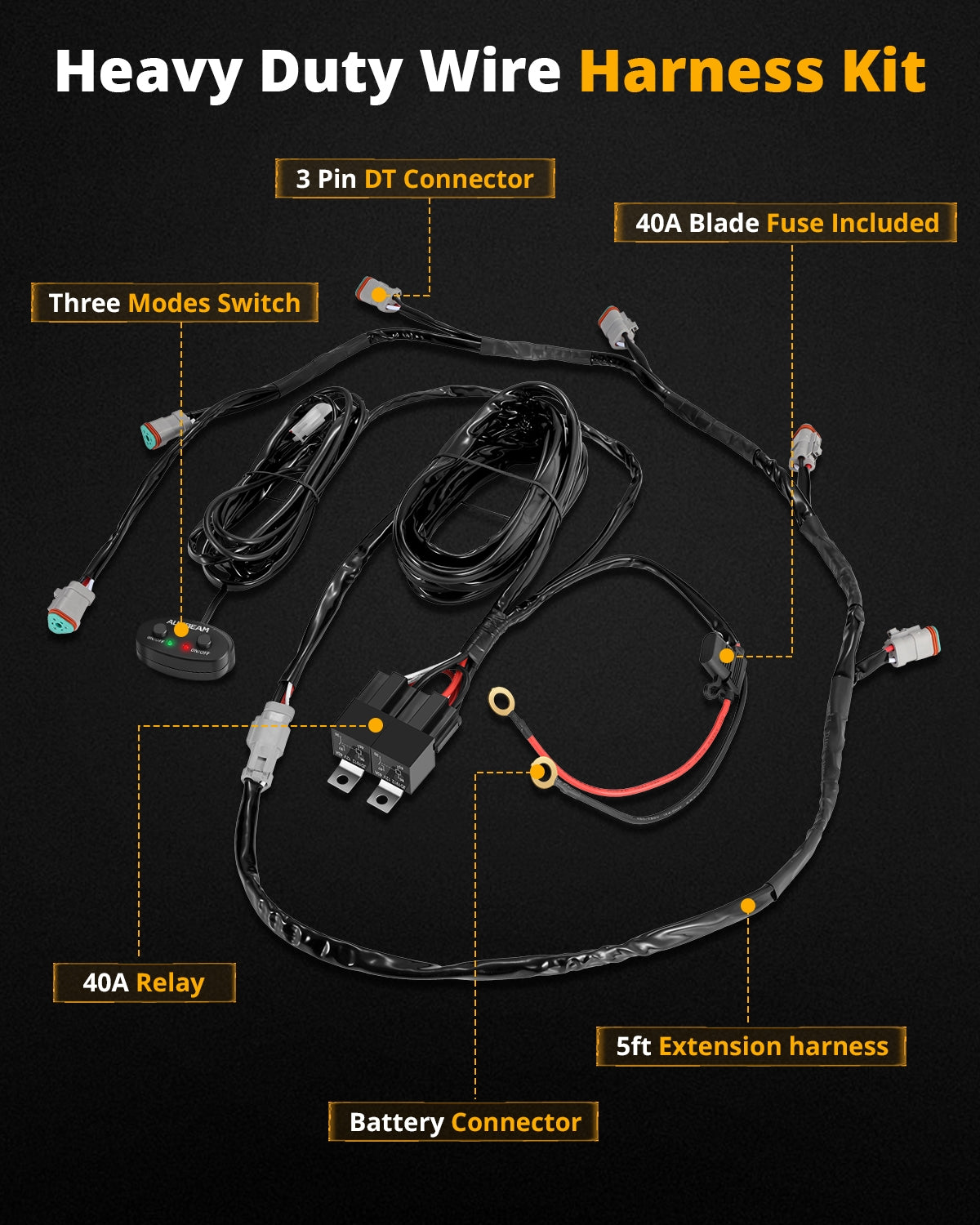

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

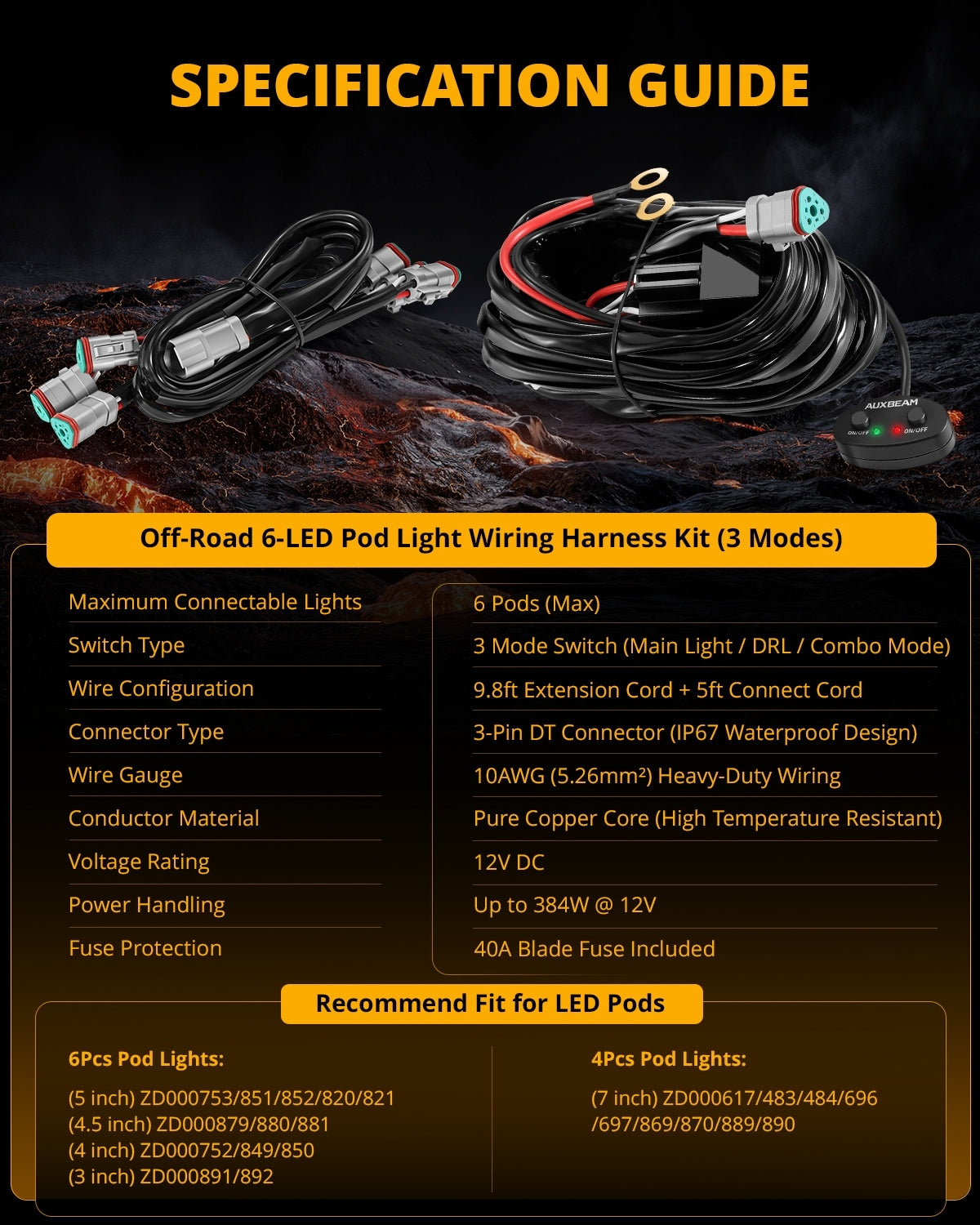

Specification:

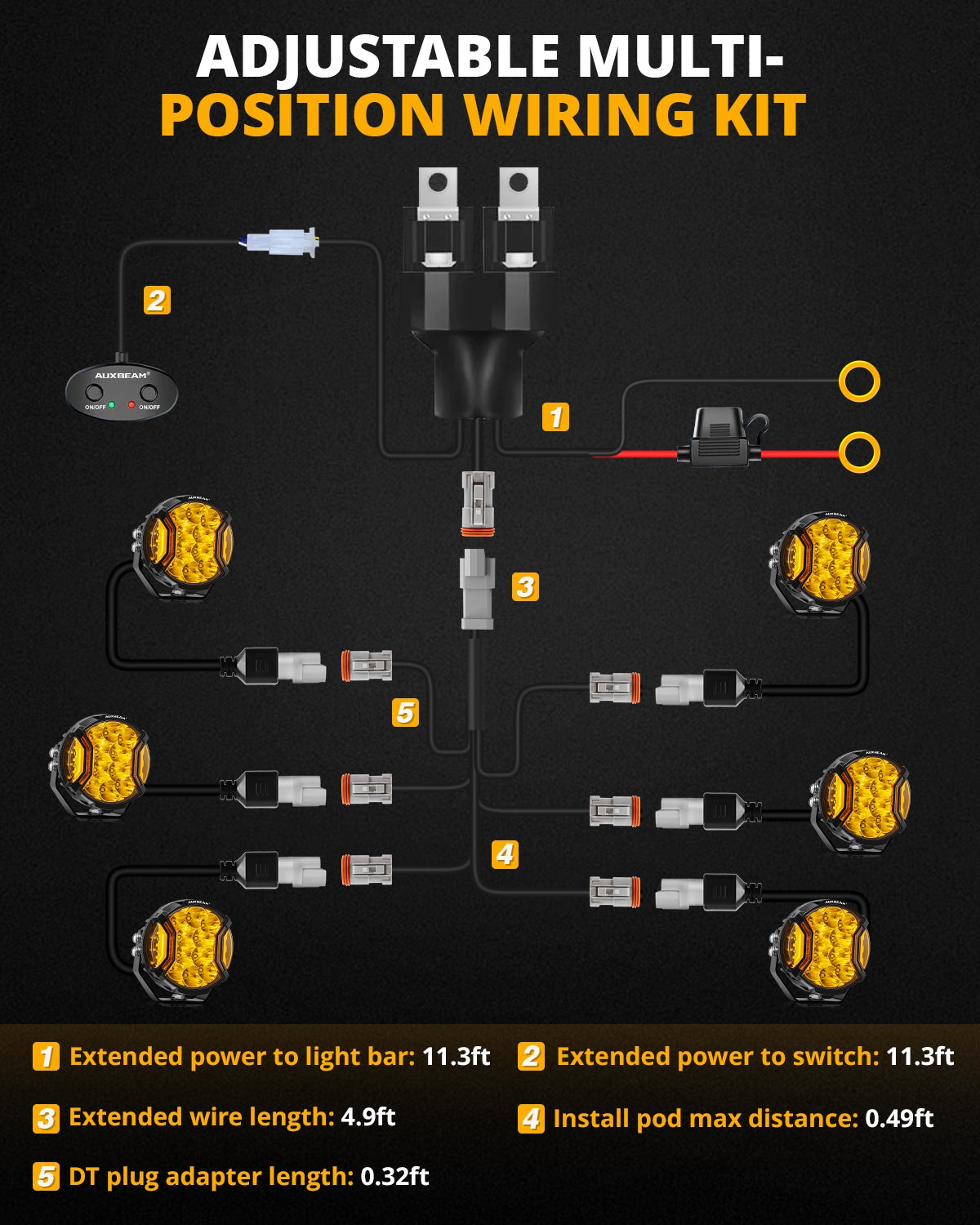

Connect Number Light: Max 6 Pods
Switch Button: Three Mode（Main Light,DRL and Both)

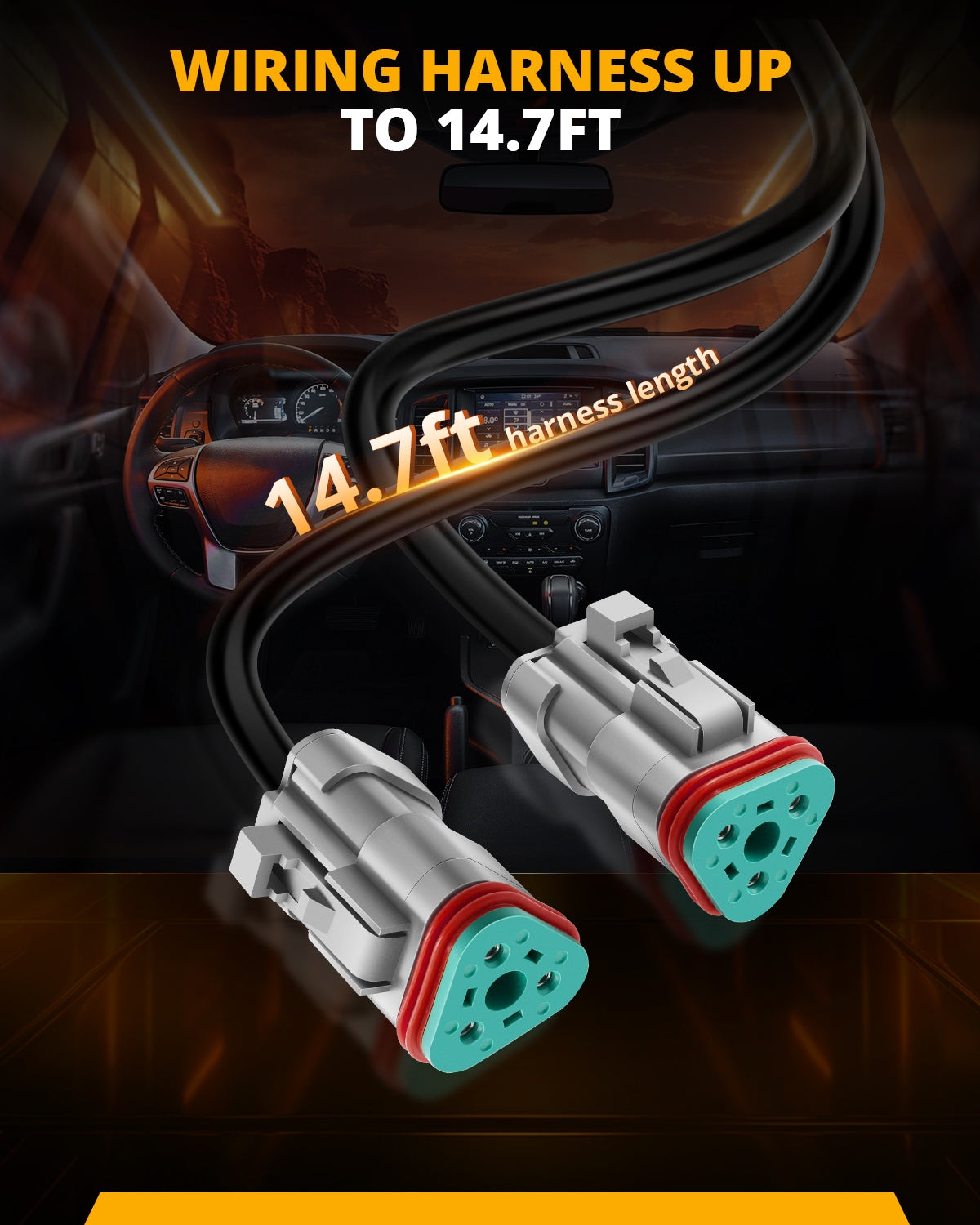

Wire Length: 3M Extension Cord +1.5M Connect Cord
Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 3 PIN
Wire Size: 10AWG national standard（DRL 18AWG）
Wire Material: 5 mm² copper wire (DRL 0.75mm²)
Working Voltage: 12V（Replaceable 24V relay）
Leads Power: Max 480W(current 40A)(DRL 72W&6A)
Fuse Size: 40A
Delay: Double 12V Delay
Packing Included:
1 x 6-Pod Power Harness (Pod lights not included)
